Cleartread quality aluminium stair nosings are specially designed manufactured with durable material which is ideal for use on exposed stair ways and high traffic areas. Used for airports, educational institutes, health care, shopping plazas and public domains, our wide range of nosings offer a solution for every requirement. All nosings have been tested to conform to current Australian Standards AS NZS 1428.4.1 and come with accredited certification.
Cleartread 1CI AL Inlay
PROFILE
SPECIFICATIONS
Cleartread Inlay
1CI AL
Alloy: 6060, Temper: T5
55mm x 2.6mm
None
4 years (As per Clearview’s Standard Warranty)
P5
72.2
73.4
AS/NZS1428.4.1:2009, BCA 2014 (Subject to surrounding floor finish luminance)
Glue fixed

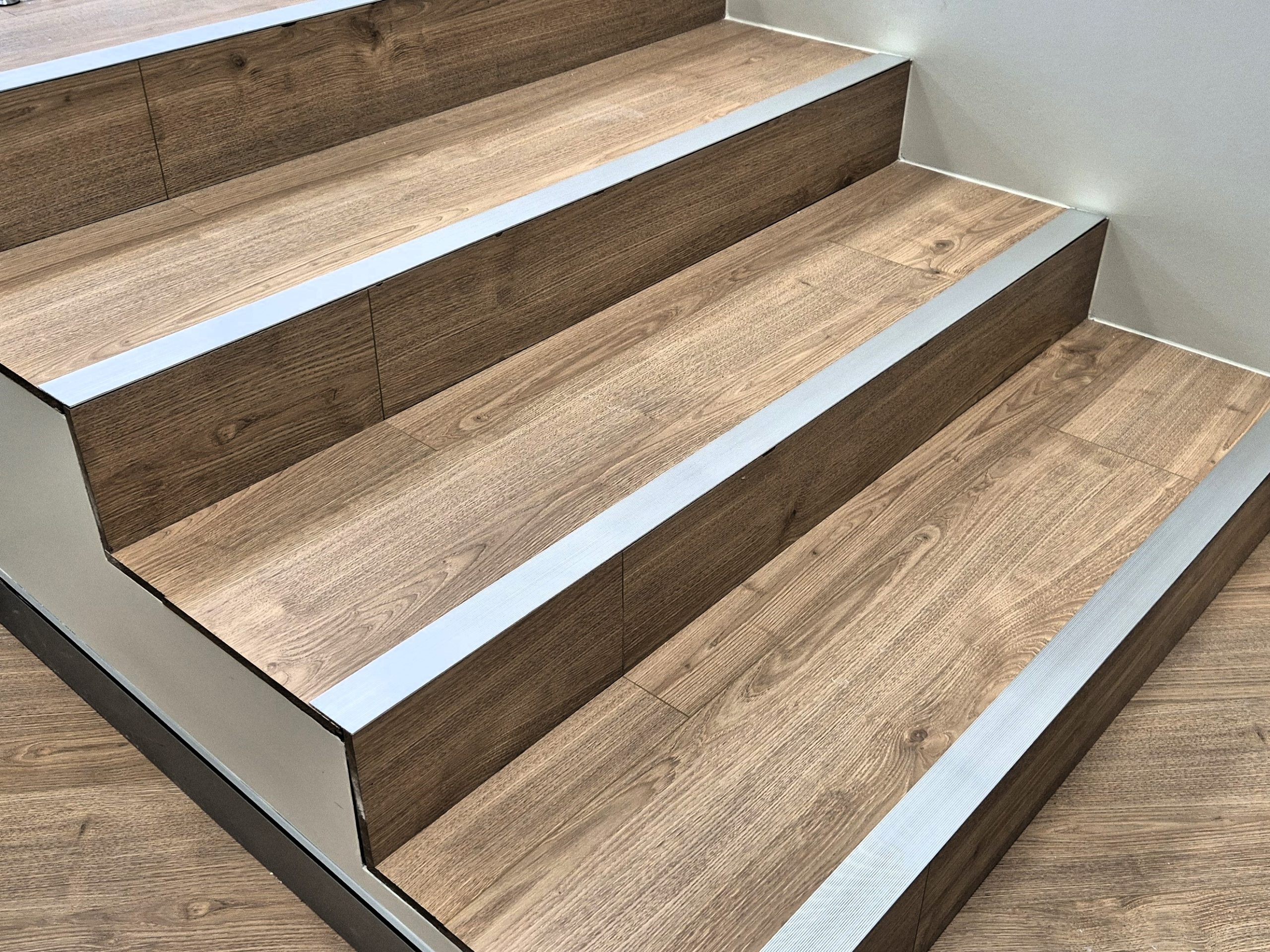

TYPICAL INSTALLATION
STANDARD COLOURS
Aluminum
Brushed-Aluminium
Black-Anodised
HOW TO SPECIFY
Copy the prewritten specification below and update all sections in brackets to create your project specification.
Design
Clearview Stair nosing Profile in Code: 1CIAL in (Clear) anodised finish aluminium. To be installed to the manufacturer’s instructions in accordance to the AS/NZS 1428.1.4.2009
Example – Typical Specification
Clearview Stair nosing Profile in Code: 1CIAL in Clear anodised finish aluminium. To be installed in accordance to the manufacturer’s instructions in accordance to the AS/NZS 1428.1.4.2009
Manufacturer
Clearview Tactiles
P: 1300 884 948
E: sales@clearviewtactiles.com.au
W: www.clearviewtactiles.com.au
